The following products are now stocked in our facility

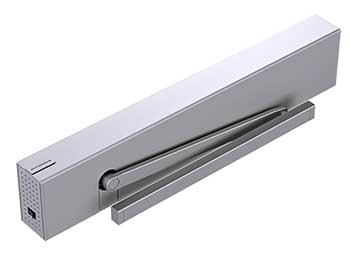

ED100LE Low Energy Swing Door Operator

The ED100LE Low Energy Swing Door Operator employs an innovative, and super-quiet, electromechanical drive that is a perfect solution for facilities who want a quick, quiet, and painless transition from manual doors to touch-free access such as commercial buildings, hospitals, schools, hotels and multifamily buildings.

Onboard power supply for access control devices: 1.5 A @ 24 VDC
Maximum door size: 48” wide
Maximum recommended door weight: 400lbs.
Operator weight: 26.58ibs.
Standard operator dimensions: 27”W x 2-3/4”H x 5-1/8”D
Non-handed

Part# ED100LE Operator Only

Part# ED100LE-COV27-CL Cover 27” for ED100LE, Clear Finish

Part# ED100LE-PUSH-ARM-CL Push Arm for ED100LE, Clear Finish

Part# ED100LE-PULL-ARM-CL Pull Arm for ED100LE, Clear Finish

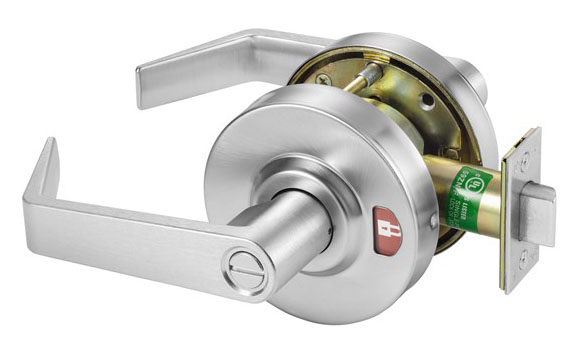

YPL Series Cylindrical Lock with Status Indicator

Eliminate potentially embarrassing situations and provide peace of mind with the new YPL Series cylindrical lock with status indicator.
With a visual display of the occupancy status, the indicator notifies individuals if the door is locked or unlocked, providing an increased level of privacy.

ANSI/BHMA Certified Grade 1
UL/cUL listed for 3 hour doors
ADA compliant
Visual status indicators in rose, displaying bold visuals for vacant or occupied lock status
Cylindrical lock construction provides durability and longevity
3-year mechanical warranty

Part#: YPL02-AU-626 Privacy Indicator Lever Lock

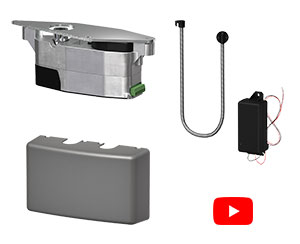

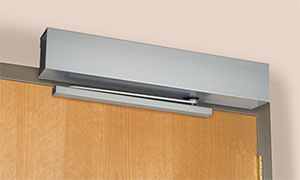

6440 Automatic Door Operator

The LCN 6400 COMPACT™ Series low-energy operator is a simple and cost-effective solution that enables facilities to automate more openings for touchless access and accessible operation.
The modular design is unique and allows the reuse of an existing LCN 4040XP mechanical closer.
The electrified module connects with a mounting plate and just four screws and drives open the mechanical closer.
